QSYL DUV Single-frequency Fiber Laser System
OVERVIEW
Based on the single-frequency green fiber laser, Optromix QSYL CW ultraviolet laser system is an excellent replacement of gas lasers and DPSS lasers due to its compact size, air cooling, high reliability, and low power consumption.

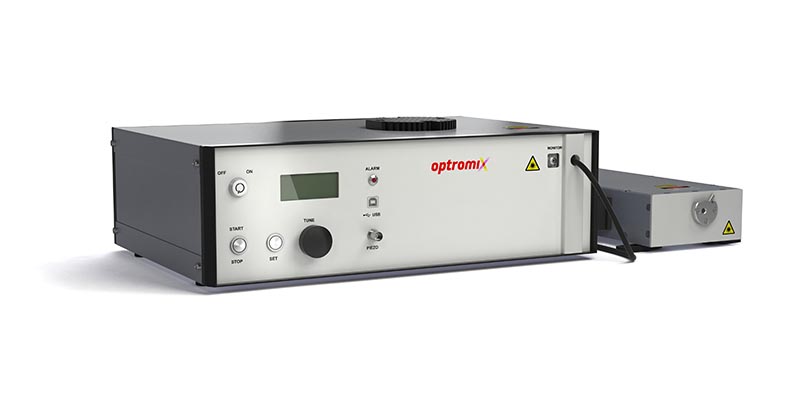

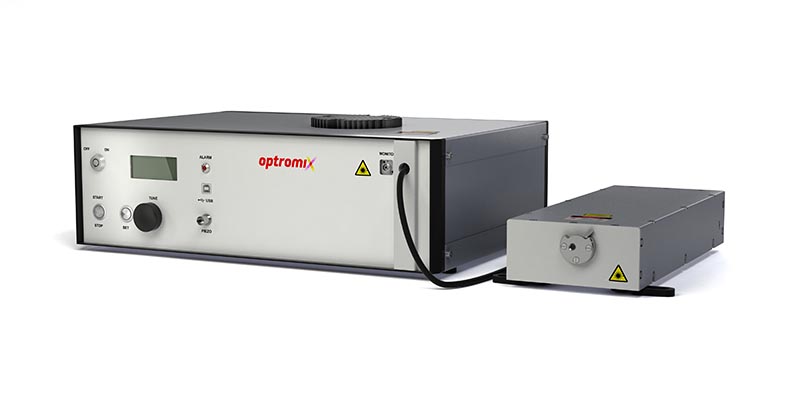

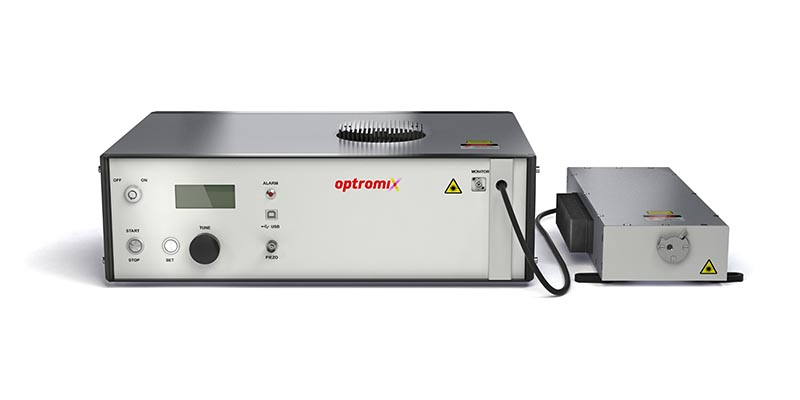

Optromix QSYL laser system consists of the electro-optical unit of the Optromix DSY green fiber laser, the optical unit including the External Cavity Frequency Doubler using a BBO crystal, and the Automatic Frequency Control Unit. Optromix QSYL can be computer controlled via USB connection using software supplied with the device. This extra-precision laser is perfect for UV Spectroscopy, DUV Lithography, FBG Writing, and Photomasks Repair.
KEY FEATURES
- High Power & Wavelength Stability
- Air Cooling
- Low Power Consumption
- High Reliability
- High Power Stability
- Low Maintenance Cost
APPLICATIONS
- UV Spectroscopy
- DUV Lithography
- FBG Writing
- Photomasks Repair
- Others
SPECIFICATIONS
| Parameter | QSY-2xx |
|---|---|
| Operating mode | CW, Single-frequency, TEM00 |
| Central Wavelength | 257.5 nm, 266.0 nm, 273.2 nm |
| Max. Output Power | 20 mW, 50 mW, 100 mW, 150 mW |
| Linewidth (FWHM) | < 200 kHz |
| Beam Quality, M2 | < 1.05 |
| Power Tunability | 20 – 100 % |
| Power Stability | < 1% |
| Electric Power Consumption | < 500 W |
| Cooling | Forced Air |
