Single-Frequency Fiber Lasers
CW single-frequency and narrow-linewidth fiber lasers for precision photonics, available across Ytterbium, Erbium, visible and near-IR wavelength regions in turn-key and OEM configurations.
1030–1122 nm · turn-key and OEM platforms
1532–1580 nm · ultra-narrow-linewidth systems
515–556 nm and ~780 nm frequency-converted output
Single-frequency laser systems across multiple wavelength regions
Optromix single-frequency fiber lasers are built around narrow-linewidth seed sources and are offered as complete turn-key systems or compact OEM modules. The family includes direct Ytterbium and Erbium fiber lasers as well as frequency-converted visible and near-IR systems.
Use the wavelength groups and comparison table below to identify the most suitable platform, then open the individual product page for complete specifications and available configurations.
Single-frequency sources for precision photonics.
Controlled wavelength adjustment around the target wavelength.
Fast tuning and modulation on supported configurations.
Single-mode TEM₀₀ output across the family.
Find a laser by gain medium or wavelength
The same Optromix platforms can be approached by laser type or target wavelength. Dedicated category pages can be connected here as they are published.
1 µm Single-Frequency Fiber Lasers
Turn-key high-power and OEM module configurations for wavelengths in the Ytterbium fiber-laser region.

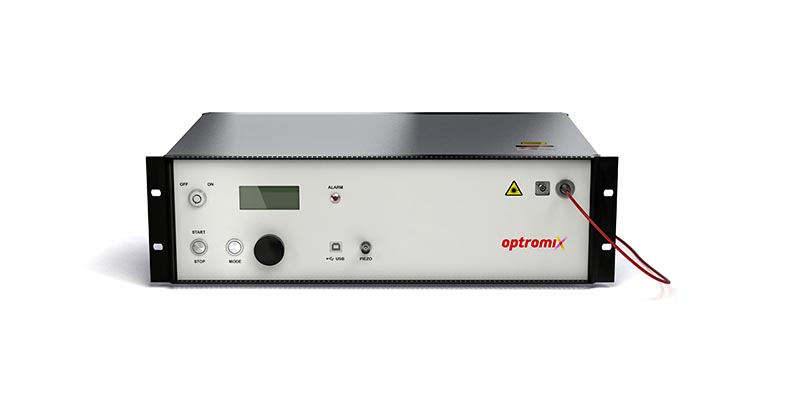

SFYX
High-power single-frequency Ytterbium fiber laser with integrated seed laser, fiber amplifier, control electronics and power supply.

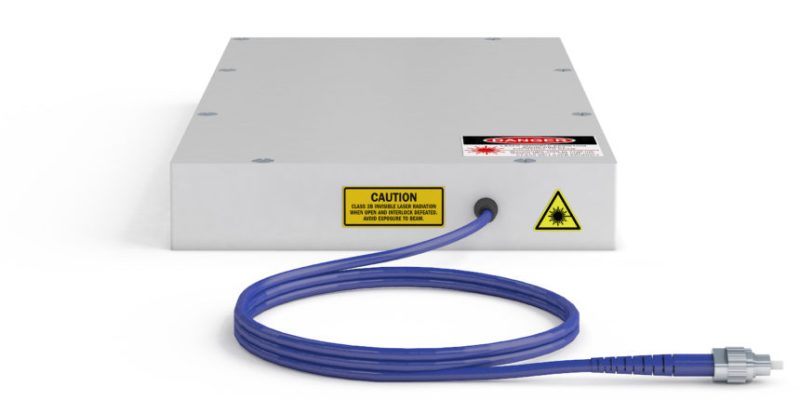

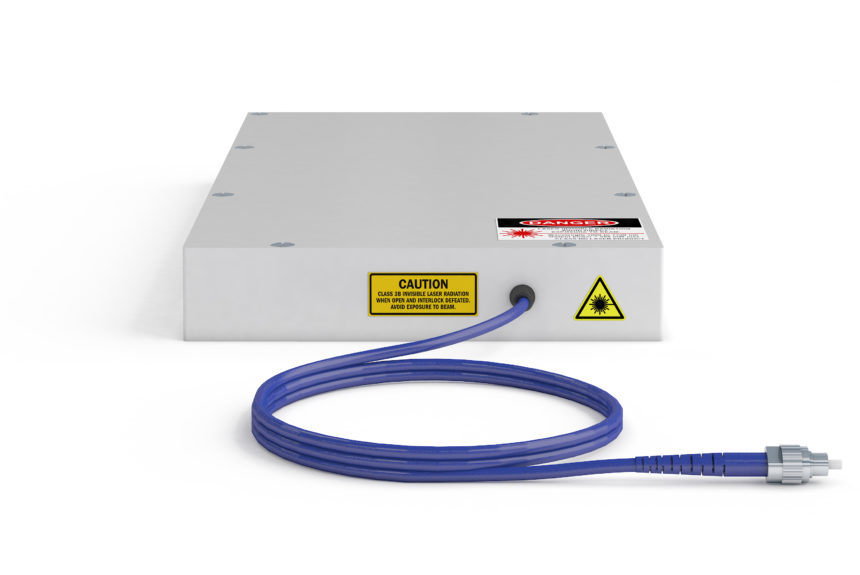

SFYSM
Compact single-frequency Ytterbium fiber laser module intended as a narrow-linewidth source for integration into other systems.
1.5 µm Single-Frequency Fiber Lasers
Ultra-narrow-linewidth Erbium fiber laser systems and OEM modules for sensing, spectroscopy, coherent communications and precision research.
SFEX
High-power single-frequency Erbium fiber laser integrating the seed laser, amplifier, power supply and control electronics.

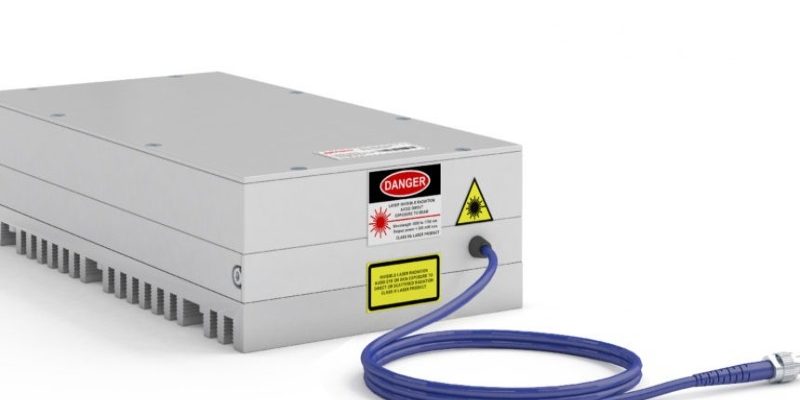

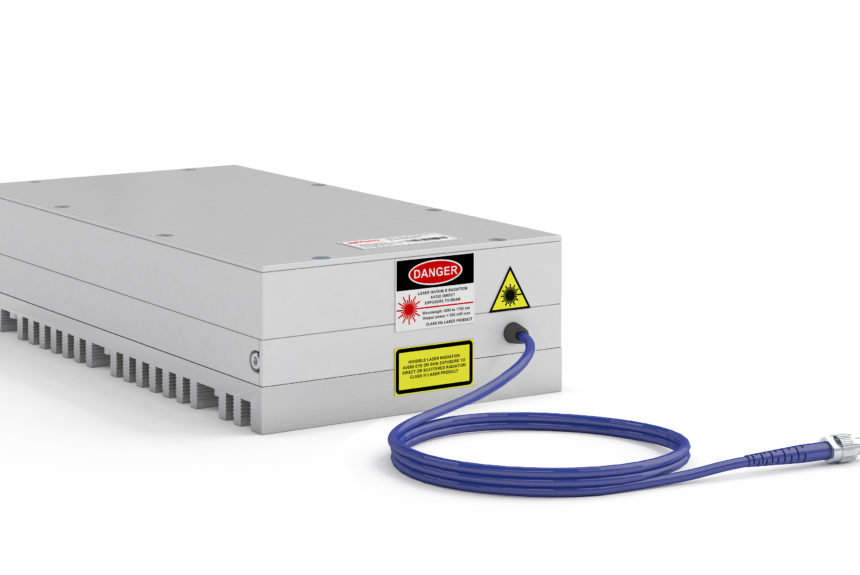

SFEXM
Compact Erbium single-frequency laser module with seed source and fiber power amplifier for system integration.
515–556 nm Single-Frequency Green Fiber Laser
Frequency-doubled single-frequency platform for visible wavelengths used in precision spectroscopy, metrology, atomic physics and microscopy.

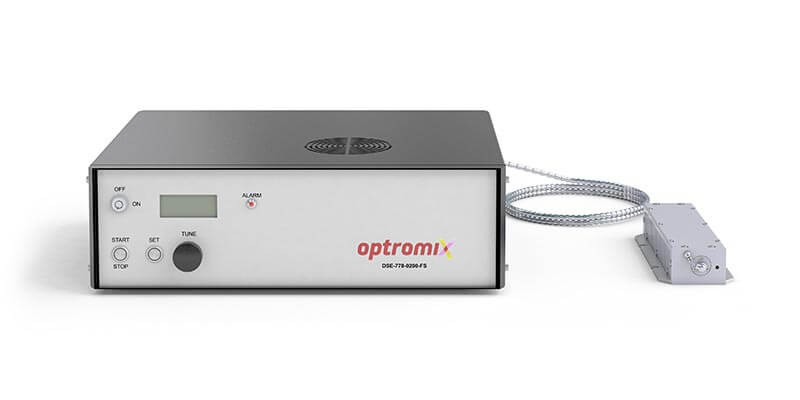

DSYL
Single-frequency Ytterbium fiber laser with a frequency doubler for green output across the 515–556 nm range.
Green Wavelength Options
Standard DSYL wavelengths include 515.0, 532.0, 546.25, 553.7 and 555.8 nm, with custom wavelengths available within the platform range.
780 nm Single-Frequency Fiber Lasers
Single-frequency fiber laser platform around 780 nm for atomic cooling and trapping, quantum optics, spectroscopy, frequency standards and metrology.
DSEL
Frequency-doubled single-frequency fiber laser with standard wavelengths at 775.06, 778.15 and 780.24 nm. Full technical specifications remain on the dedicated DSEL product page.
The dedicated wavelength page can be connected here when it is published.
Compare Single-Frequency Laser Platforms
Use this overview to identify the wavelength family and product format. Detailed specifications are available on each product page.
| Model | Wavelength region | Linewidth | Format | Positioning | |
|---|---|---|---|---|---|
| SFYX | 1030–1122 nm | <100 kHz | Turn-key | High-power Ytterbium | Details → |
| SFYSM | 1030–1120 nm | <100 kHz | OEM module | Ytterbium OEM source | Details → |
| SFEX | 1532–1580 nm | <5 kHz | Turn-key | High-power Erbium | Details → |
| SFEXM | 1532–1578 nm | <5 kHz | OEM module | Compact Erbium module | Details → |
| DSYL | 515–556 nm | <200 kHz | Turn-key | Green / frequency-doubled | Details → |
| DSEL | Around 780 nm | <10 kHz | Turn-key | 780 nm / frequency-doubled | Details → |
Single-frequency operation starts with the seed source
Optromix single-frequency systems use DFB fiber-laser seed sources. A distributed Bragg reflector in the fiber cavity supports single-longitudinal-mode emission, while amplification and frequency-conversion stages extend the available power and wavelength ranges.
The platform combines wavelength stability with thermal tuning and fast piezo tuning, allowing the source to be adjusted around the required operating wavelength.
Single-longitudinal-mode laser architecture.
Power scaling on complete laser systems.
Visible and 780 nm output platforms.
Compact modules for embedded systems.
Ultra-narrow-linewidth single-frequency source
Power scaling while maintaining the required architecture
Direct fiber output or frequency-converted wavelength
Applications of Single-Frequency Fiber Lasers
Optromix laser families address scientific and precision-photonics applications where narrow linewidth, stable wavelength and high beam quality are important.
Stable single-frequency sources for atomic physics experiments.
Narrow-linewidth sources for quantum optical systems.
High spectral purity for narrow optical transitions.
Controlled wavelength sources for reference systems.
Precision laser sources for optical measurement systems.
Stable CW narrow-linewidth sources for sensing architectures.
Single-frequency Erbium platforms for coherent optical applications.
High-quality CW sources for nonlinear optical processes.
